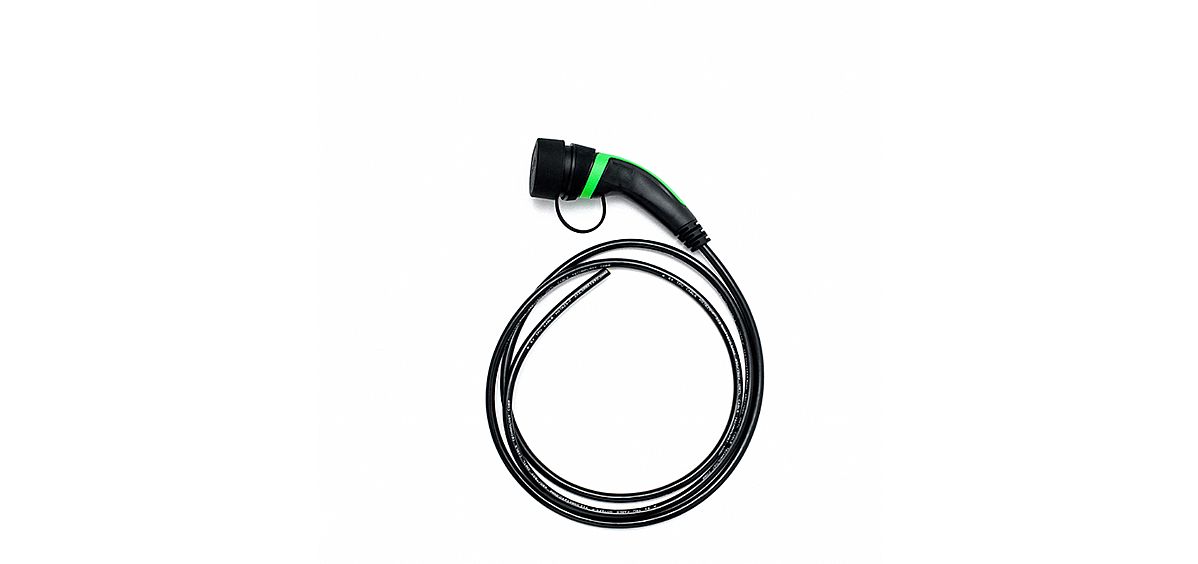

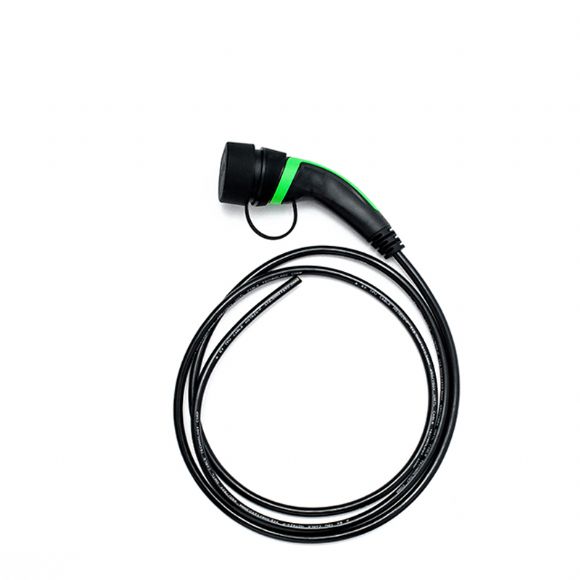

AC Type 2 Electric Vehicle Charging EV connector, RF integrated, small OD cable, Shutter integrated

Flip Flops

Sample Title

Sample Text

The NexwayEV AC Type 2 Electric Vehicle Charging EV Plug is the best price for OEM EV connectors. It is a widely used charging connector in Europe designed to provide safe and reliable charging for electric vehicles. It adopts an ergonomic design that fits comfortably in human hands, making it easy to use and handle.

This charging connector is specifically used to charge electric vehicles, providing a secure and efficient charging solution. It is made of reliable material that can withstand a drop from a height of 1 meter and being crushed by a 2-ton car.

Request a quote

Available in black and white, with customizable color options. The EV connector is RF integrated, with a small OD cable and shutter integrated. It has CE/TUV certification and is suitable for a range of car brands, including BMW, LEAF, MG, NISSAN, AUDI, and FORD. OEM/ODM services are strongly supported, and samples are available for testing and evaluation. The product has a 2-year warranty and a rated current of 16A/32A, providing efficient and reliable charging for electric vehicles.

Product Specifications

Rated Current	16A/32A
Rated Voltage	250V/ 480V AC
Insulation Resistance	＞1000MΩ
Contact Resistance	0.5 mΩ Max
Withstand Voltage	2000V
Flammability Rating	UL94V-0
Mechanical Lifespan	＞10000 Mating Cycles
Casing Protection Rating	IP67
Casing Material	Thermoplastic
Terminal Material	Copper alloy, silver plated + thermoplastic top
Certification	TUV/ CE
Warranty	24 months/10000 mating cycles
Operating Environment Temperature	-30℃- +50℃

Ergonomic Design

This Charging EV Plug boasts an ergonomic design that has been optimized to fit the human hand. This ensures a comfortable grip and makes it easy to hold and use. This design enhancement not only enhances the overall user experience but also contributes to a more efficient and user-friendly charging process.

Safe Charging

This plug features an IP67 rating, which guarantees safe use in adverse weather conditions and harsh environments. This high level of protection ensures reliable performance and longevity, even in challenging situations, making it an ideal choice for a wide range of charging applications.

Durable Construction

The plug is constructed from high-quality materials, including thermoplastic and copper alloy pins, which are both durable and wear-resistant. This robust design ensures that the plug can withstand up to 10,000 mating cycles, guaranteeing long-term reliability and consistent performance, even in heavy-use applications.

Protective Plug Cover

The Plug includes a matching cover designed to protect the pins from moisture and contaminants, preventing damage and corrosion. This additional layer of protection ensures that the plug maintains its functionality over time, ensuring reliable performance and longevity for your EV charging needs.
