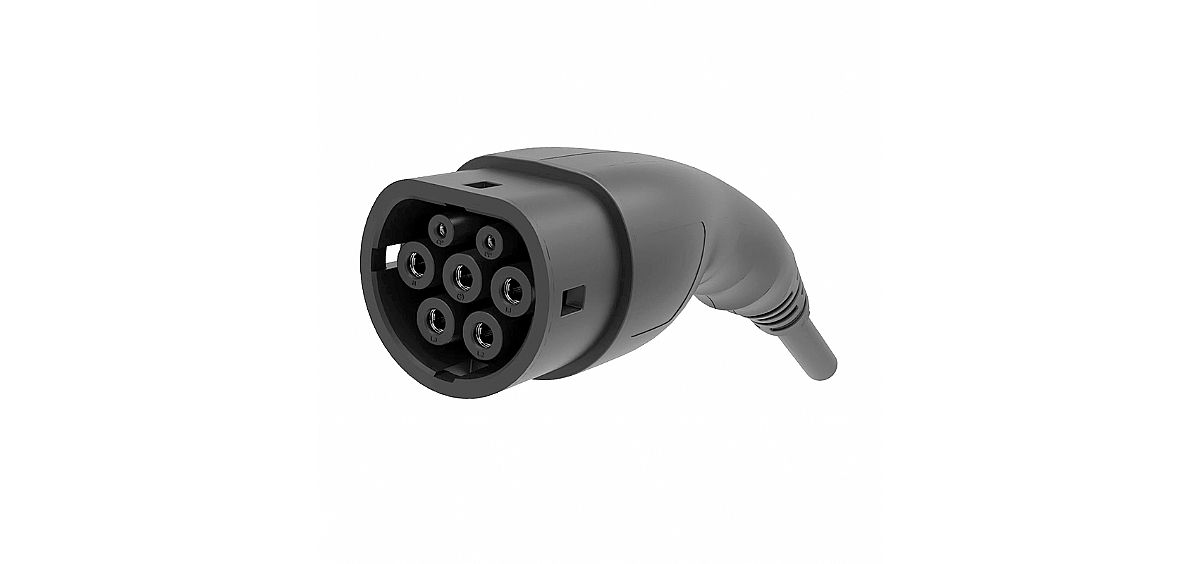

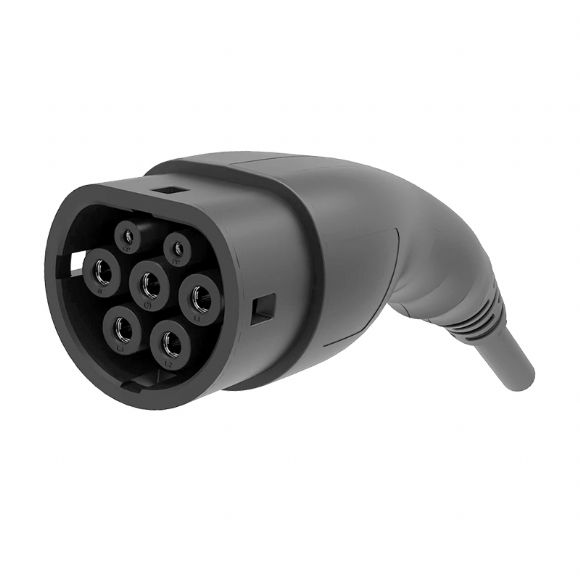

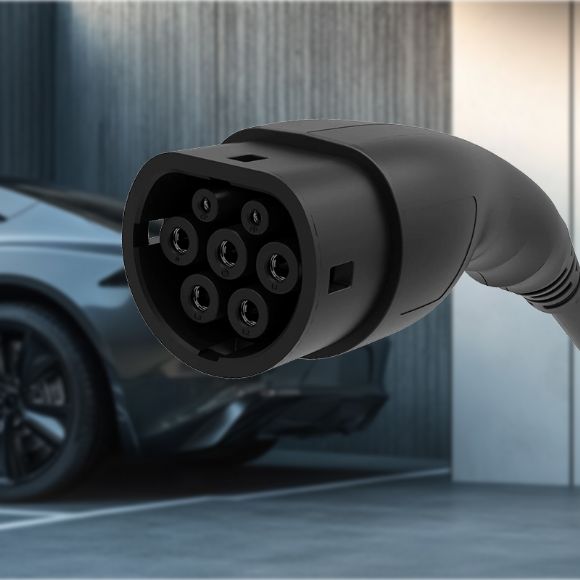

AC Type 2 Electric Vehicle Charging EV Plug, 1/3 phase,16/32A, ECO

Flip Flops

The AC Type 2 Electric Vehicle Charging EV connector complies with the IEC 62196-1/2 standard, is suitable for home and commercial mode 2 and mode 3 AC charging, and can be customized for customers.

AC type 2 connector adopts an ergonomic design that fits comfortably in human hands, making it easy to use and handle.
The shell of this 16/32A EV charging connector is molded in one piece. It has a beautiful appearance, a comfortable grip, and easy plugging and unplugging.

This AC charging connector uses the IP67 protection standard to ensure safety and durability during long-term use.

Request a quote

The AC Type 2 Electric Vehicle Charging EV Plug is available in black or white, with customizable colors also an option. It has CE/TUV certification and is suitable for a range of car brands, including BMW, LEAF, MG, NISSAN, AUDI, and FORD. OEM/ODM services are strongly supported, and samples are available for testing and evaluation. The product has a 2-year warranty and a rated current of 16A/32A, providing efficient and reliable charging for electric vehicles.

Product Specifications

Rated Current	16A/32A
Rated Voltage	250V/ 480V AC
Insulation Resistance	＞1000MΩ
Contact Resistance	0.5 mΩ Max
Withstand Voltage	2000V
Flammability Rating	UL94V-0
Mechanical Lifespan	＞10000 Mating Cycles
Casing Protection Rating	IP55
Casing Material	Thermoplastic
Terminal Material	Copper alloy, silver plated + thermoplastic top
Certification	TUV/ CE
Warranty	24 months/10000 mating cycles
Operating Environment Temperature	-30℃- +50℃

Ergonomic Design

This Charging EV Plug boasts an ergonomic design that has been optimized to fit the human hand. This ensures a comfortable grip and makes it easy to hold and use. This design enhancement not only enhances the overall user experience but also contributes to a more efficient and user-friendly charging process.

Safe Charging

This plug features an IP55 rating, which guarantees safe use in adverse weather conditions and harsh environments. This high level of protection ensures reliable performance and longevity, even in challenging situations, making it an ideal choice for a wide range of charging applications.

Durable Construction

The plug is constructed from high-quality materials, including thermoplastic and copper alloy pins, which are both durable and wear-resistant. This robust design ensures that the plug can withstand up to 10,000 mating cycles, guaranteeing long-term reliability and consistent performance, even in heavy-use applications.

Protective Plug Cover

The Plug includes a matching cover designed to protect the pins from moisture and contaminants, preventing damage and corrosion. This additional layer of protection ensures that the plug maintains its functionality over time, ensuring reliable performance and longevity for your EV charging needs.
