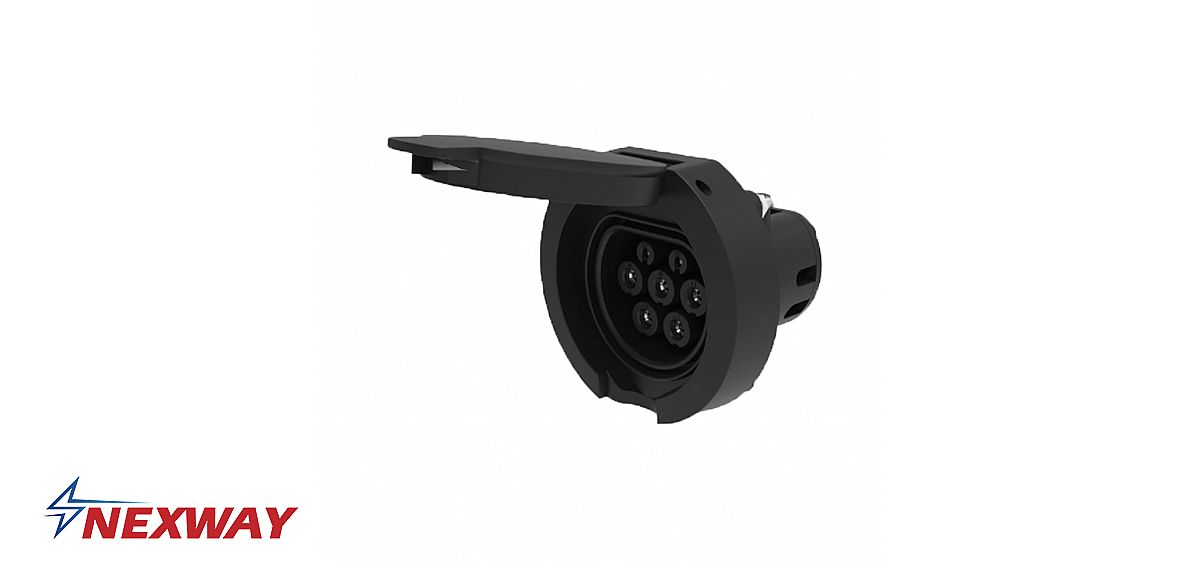

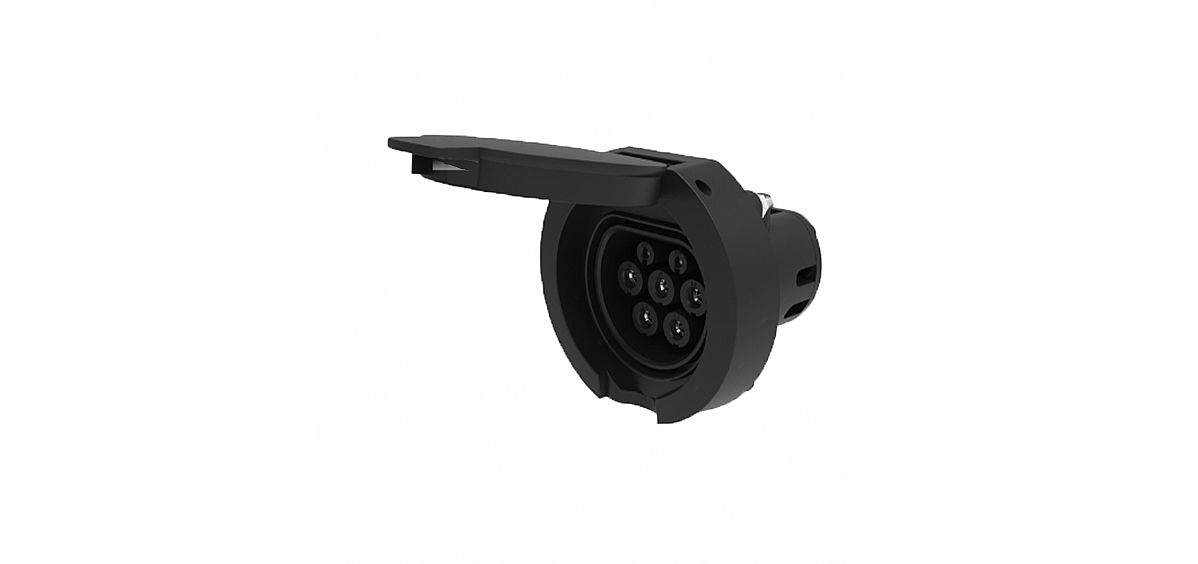

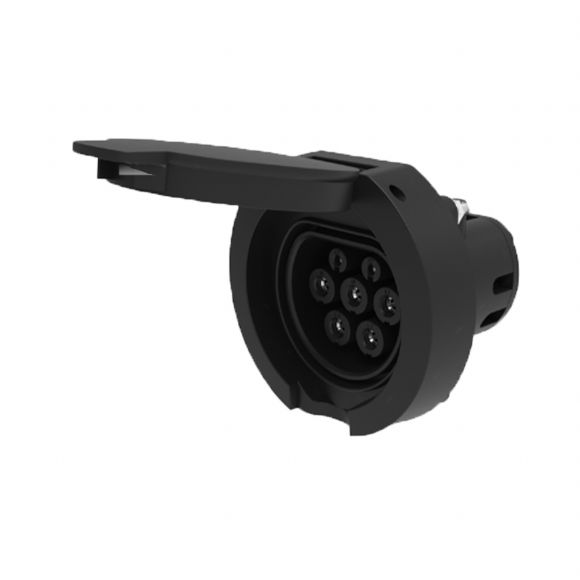

The NexwayEV Round Type 2 AC Socket/Inlet with Shutter is a reliable charging solution that complies with IEC 62196-1/2 standards. Designed for installation on IEC AC charging piles, it charges electric vehicles (EVs) using alternating current (AC), making it suitable for both home and commercial charging piles.

Constructed from high-strength thermoplastic material, the Type 2 EV charging socket is durable and well-suited for complex environments. The silver-plated core terminal surface ensures efficient power transmission and optimal performance.

The Type 2 AC socket can be customized with a customer logo, maintaining brand consistency with the charging station. Combining durability, efficiency, and customization, the NexwayEV Type 2 AC Socket/Inlet is a versatile and dependable choice for electric vehicle charging.

Request a quote

More Info

The charging station socket outlet is for charging electric vehicles (EV) with alternating current (AC), compatible with type 2 charging station plug, and for installation on electric vehicle charging stations (EVSE).

Product Specifications

Definition	Standard	IEC 62196-1:2016
	Charging mode	3
	Connection mode	B
	Current type	AC
	Housing color	Black
	Shell color	Black
Environmental Performance	Ambient temperature (working)	-30～50℃
	Ambient temperature (storage)	-40～80℃
	Highest altitude	2000M
	Ingress protection	IP54
Mechanical Performance	Insertion / Withdrawal cycles	＞10000times
	Insertion / Withdrawal force	＜100N
	Withstanding Impact force	Charging interface can withstand 1 meter height drop and 2 tons of car rolling
Electrical Performance	Rated current	16A,32A
	Rated voltage	250V/480V
	Power contact number	3(L, N, PE) 5(L1, L2, L3, N, PE)
	Signal contact number	2(CP,PP)
	Signal pin current	2A
	Insulation resistance	＞100MΩ

Product Advantages

Ergonomic Design

Universal design supports AC single-phase and three-phase charging. Flexible installation reduces infrastructure costs and is compatible with a wide range of electric vehicle models.

Safe Charging

It has a high power output capability (up to 22 kW) for shorter charging times. It supports robust communication protocols between the vehicle and the charging station for increased safety and efficiency.

Durable Construction

It is easy to install and maintain, with a high reliability and durable structure. The mechanical locking mechanism ensures a safe and secure charging process, minimizing service interruptions.

Protective Plug Cover

Associated with mature standards (IEC 62196-2), we offer customized solutions that perfectly meet your specific needs and preferences.
