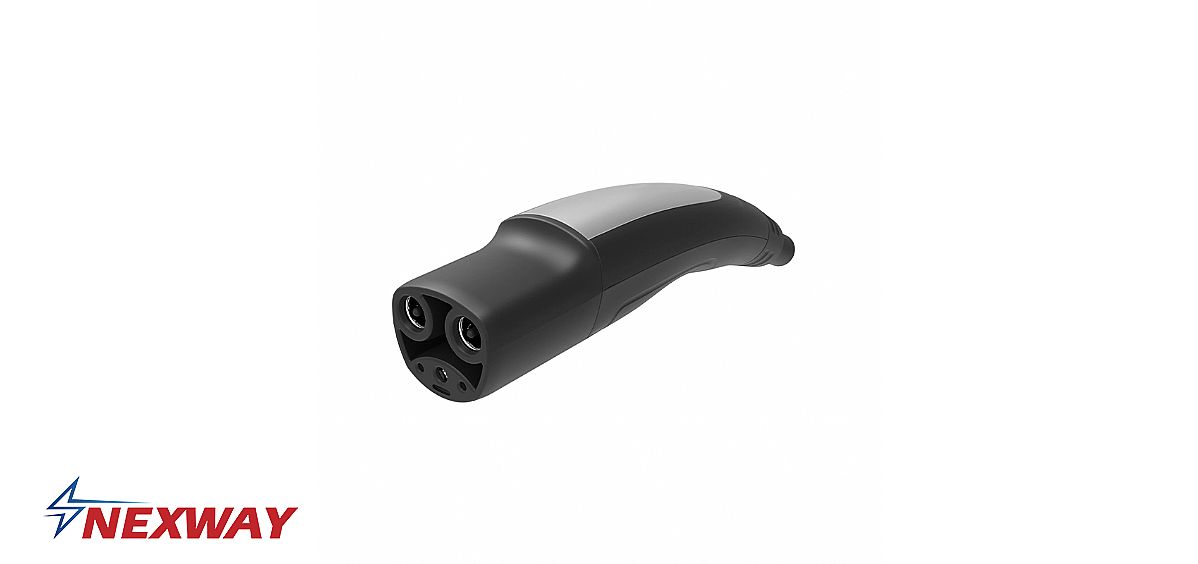

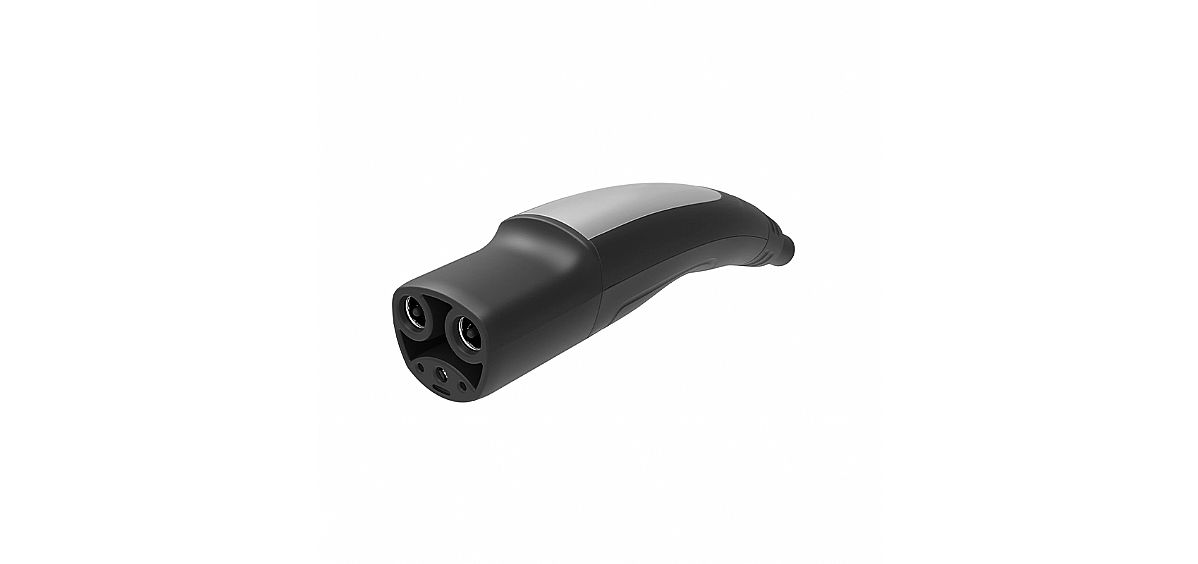

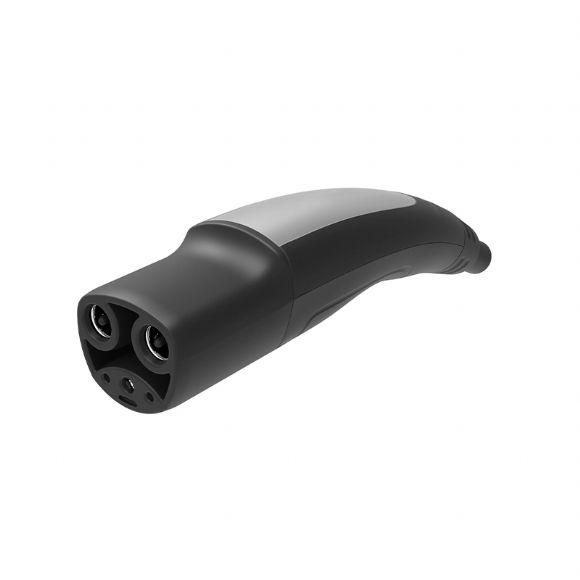

Nexway Air-Cooled DC Connector for fast Charging

Flip Flops

The NexwayEV Air-Cooled DC Connector for Fast Charging V2.0 is designed for fast and efficient charging and complies with the IEC 62196-1/3 standard. It enables direct current (DC) fast charging for electric vehicles (EVs) through an IEC vehicle socket, making it suitable for both home and commercial charging stations.

This connector is built with reliable materials and can withstand a 1-meter drop and 2 tons of car crushing, ensuring durability and resilience in demanding conditions. The air-cooled EV connector is fully insulated, providing a comfortable grip while maintaining safe and reliable operation.

Request a quote

More Info

The air-cooled EV chargers feature replaceable power terminals and gun heads, which extend the charging gun's service life and reduce operation and maintenance costs. Additionally, the surface of the power contacts is silver-plated, reducing surface contact resistance and enhancing charging efficiency.

The NexwayEV 200A/250A/300A/350A Air-Cooled DC Connector is ideal for fast-charging mid-range to high-performance electric vehicles. This black connector suits brands like Nissan, Hyundai, Volkswagen, BMW, Ford, etc.

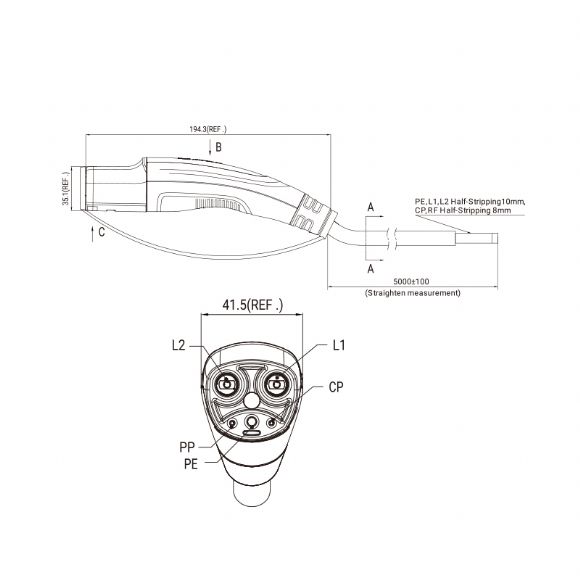

Product Specifications

Definition	Standard	NACS
	Charging mode	4
	Connection mode	C
	Current type	DC
	Cable color	Black
	Shell color	Black
Environmental Performance	Ambient temperature (working)	-30～50℃
	Ambient temperature (storage)	-40～80℃
	Highest altitude	2000M
	Ingress protection	Type 3S
Mechanical Performance	Insertion / Withdrawal cycles	＞10000times
	Insertion / Withdrawal force	＜90N
	Withstanding Impact force	Charging interface can withstand 1 meter height drop and 2 tons of car rolling
Electrical Performance	Rated current	200A,250A,300A,350A
	Rated voltage	1000V
	Power contact number	3(DC+,DC-,PE)
	Signal contact number	2(PP,CP)
	Signal pin current	2A
	Insulation resistance	＞100MΩ

Product Advantages

Ergonomic Design

The handle of our charging guns is ergonomically designed, intuitive, and easy to hold and use.

Safe Charging

Good protection performance and high durability. The interface material and structure can withstand more than 10,000 plug-ins and unplugs.

Durable Construction

The plug is constructed from high-quality materials, including thermoplastic and copper alloy pins. This robust design ensures that the plug can withstand up to 10,000 times cycles.

Protective Plug Cover

We offer customized solutions, including different cable lengths and specifications. Customize your charging setup to meet your specific needs and preferences perfectly.
