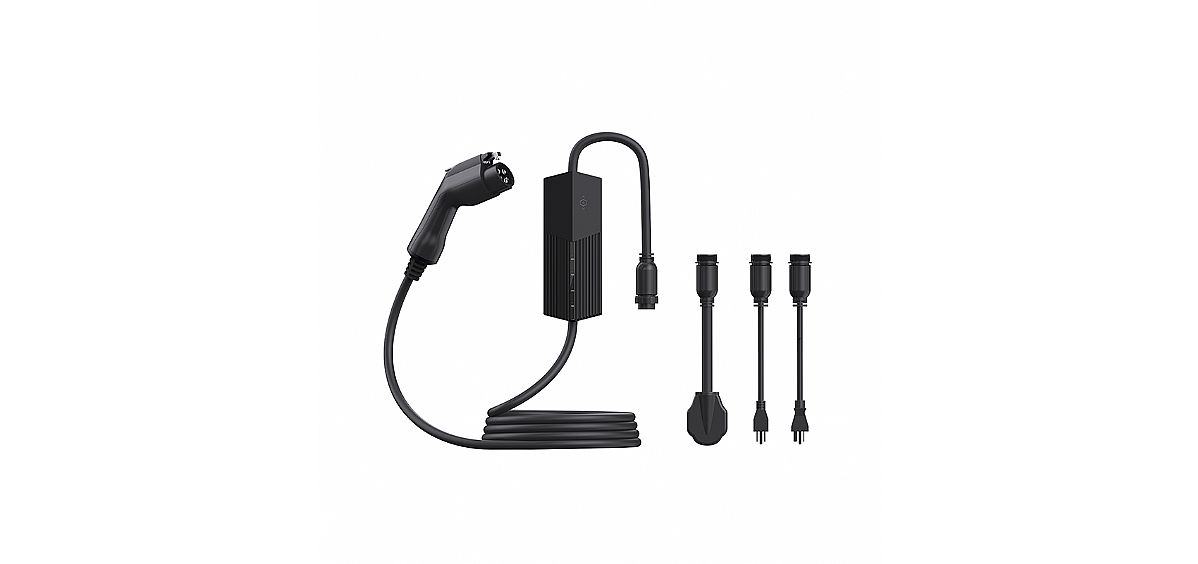

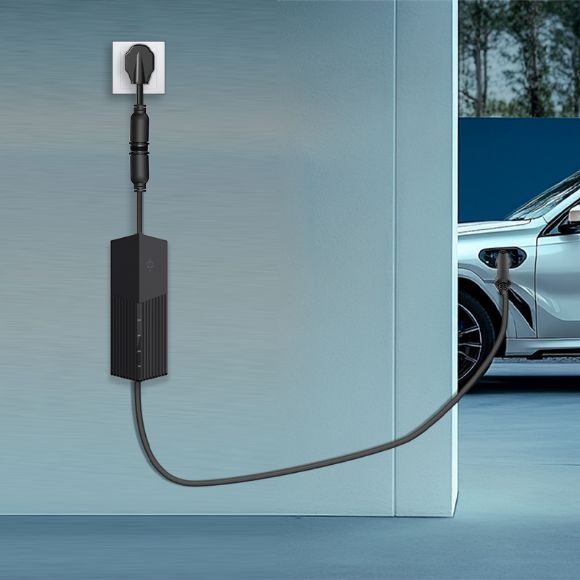

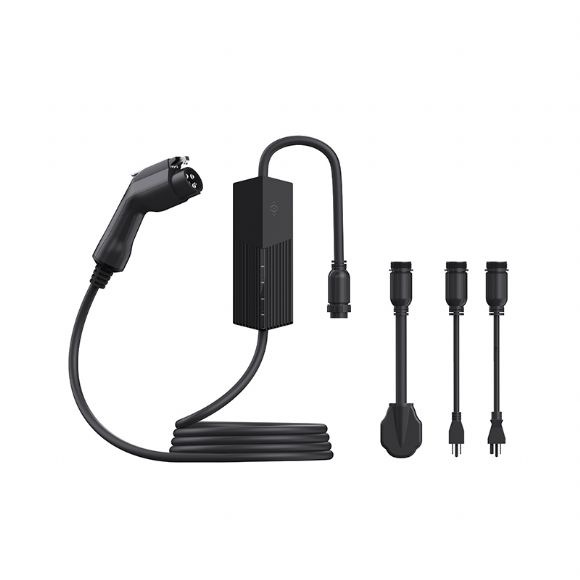

NEXWAY Type1 SAE J1772 Mode2 Charger 6-32A with Screen

Flip Flops

This Mode2 Type1 SAE J1772 Charger is innovatively designed with a screen that features power-off protection, offers comprehensive functionality, and is affordable. The XLPO used for cable insulation is aging-resistant and prolongs the product's service life. The TPU sheath prolongs the cable's bending life and wear resistance. It is the best material on the market and meets EU standards.

The Type1 EV charging cable's protection level reaches IP 55 (working state). In harsh environments, the product can isolate water and enhance product safety. EV charging cable type 1 adopts a two-color coating design and supports custom colors (such as orange, blue, green, gray, and white).

Reserve laser marking space for customers. Provide OEM/ODM services that encourage customers to expand the market.

Request a quote

More Info

Innovative design with a screen that features power-off protection, offers comprehensive functionality and is affordable.
Color: Support customized
Car Fitment: Volkswagen, BMW, Toyota Prius, BYD etc
OEM/ODM: Highly supportive and can provide sample
Warranty: 2 years
For Application: Commercial, Workplace, Hotel, Home/Residential, and Public EV Charging

Product Specifications

Definition	Standard	SAE J1772
	Charging mode	2
	Connection mode	B
	Current type	AC
	Housing color	Black
	Cable color	Black
Environmental Performance	Ambient temperature (working)	-30～50℃
	Ambient temperature (storage)	-40～80℃
	Highest altitude	2000M
	Ingress protection	type 3R / type 3S
Mechanical Performance	Insertion / Withdrawal cycles	＞10000times
	Insertion / Withdrawal force	＜75N
	Withstanding Impact force	Charging interface can withstand 1 meter height drop and 2 tons of car rolling
Electrical Performance	Rated current	6-32A
	Rated voltage	240V
	Power contact number	3(L, N, PE)
	Signal contact number	2(CP,CS)
	Signal pin current	2A
	Insulation resistance	＞100MΩ

Product Advantages

Ergonomic Design

Available in three series: Sonic Series, Mega Series, and Para Series. Our EV chargers' stylish design combines functionality and beauty.

Safe Charging

Our EV chargers charge quickly and are compatible with Type 2, Type 1, GB, and NT connectors. Our chargers are durable and have an IP67 rating.

Durable Construction

The handle of our charging guns is ergonomically designed, intuitive, and comfortable to use.

Protective Plug Cover

We offer customized solutions, including different cable lengths and specifications. Customize your charging setup to meet your specific needs and preferences perfectly.
