This standard makes life much easier, even though it may sound like a bunch of technical gibberish. They ensure that your car can plug into most public charging stations without any drama. Imagine if every car brand had its unique plug. You'd need a whole bag of adapters just to get through a road trip. Thanks to standards like J1772, you don't have to worry about that. It's one connector that works with most EVs and chargers in North America.
Learn about the J1772 EV charger standard, which will simplify your experience with electric vehicles and guarantee hassle-free compatibility. Also, find out here what's essential for all EV owners.
First things first. J1772 is not a secret code.
SAE J1772 is a standard plug used for charging most electric cars (EVs) with regular AC (alternating current) electricity. It's the main type of charging connector used in North America. Essentially, SAE International created this North American standard for EV electrical connectors. To put it simply, it's a standardized plug that guarantees your EV will work with the majority of chargers in the US and Canada.
How SAE 1772 Works

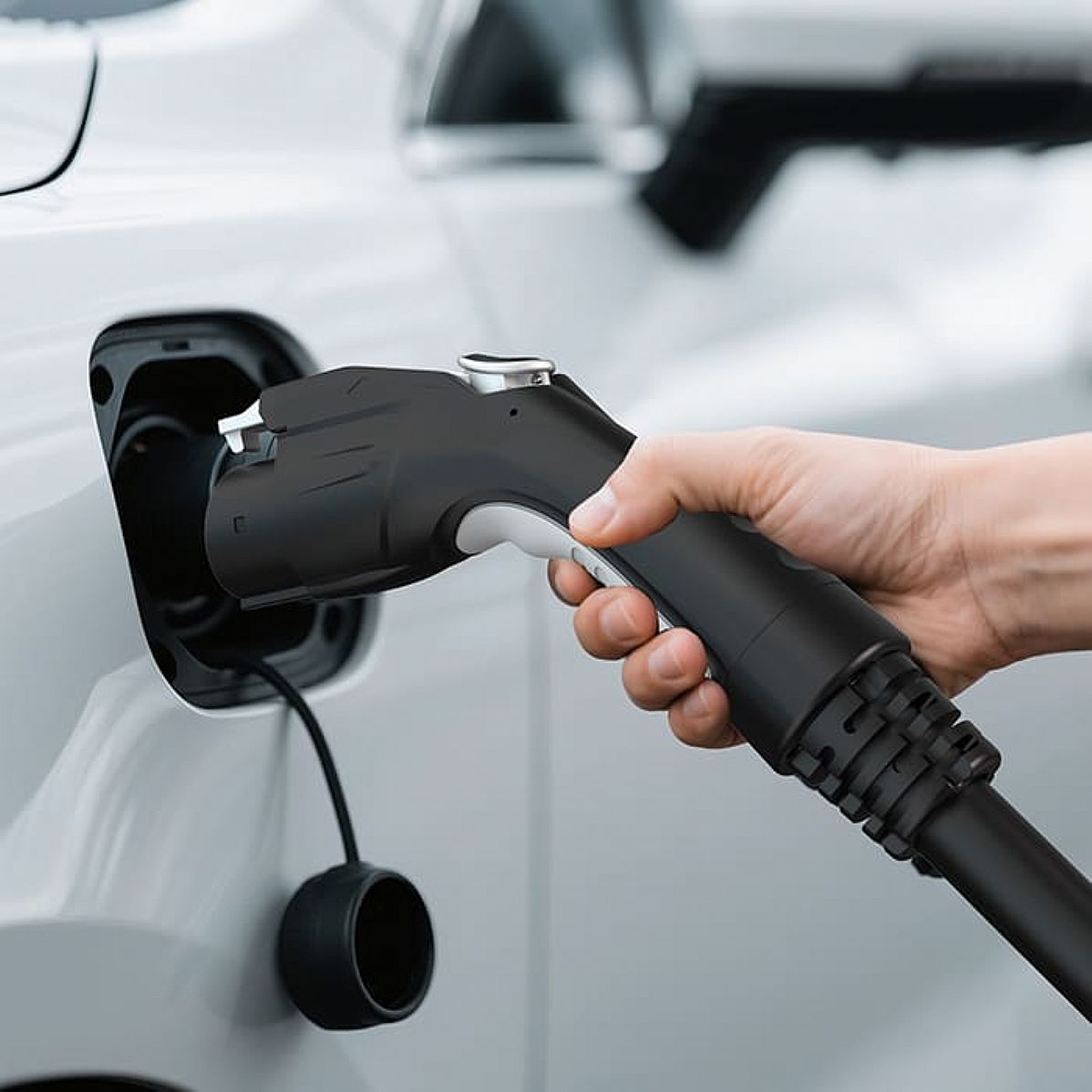

The J1772 plug, which mates with a car's port, delivers electricity from a standard wall outlet or charging station to the car's onboard charger, turning it into current the battery can use.
You can charge your EV using:
- A regular 120-volt outlet at home (slow charging, about 1.4 kW)
- A 240-volt charger (much faster, up to 19.2 kW)
The SAE 1772 Connector
OK, let's get to it. The J1772 connector is a bit bulky. There are five pins inside it, and it is round. All of the pins of this connector are doing a different job. Here's a summary:
- Two power pins (L1 and L2): These are the ones that deliver the electricity.
- Ground pin (PE): A grounding wire shall be connected to avoid shock.
- Proximity pin (PP): The PP pin, or "Plug Present," does a couple of critical things to ensure that charging is safe and happens predictably. The first is to signal the car that the plug is in, and therefore that it can start charging. It can prevent an accidental unplugging by locking around the plug during the charge. Then, when you're ready to unplug, the release button sends a signal through this pin to the charger telling it to safely cut off the power before the plug is removed. It's sort of like turning off a light before you replace the bulb.
- Control pin (CP): The CP pin, or the fifth pin, is kind of a line of communication between your car and the charger. Once the plug is in, this pin checks if it’s safe to start charging. It also gives the car information about how much power the charger can supply. The charger sends a small signal over this pin to verify that everything is connected correctly. If the car responds properly, the charger knows it's safe. Think of it as a secret handshake between the charger and the car to communicate, "We're good to go!”
Now, you might be thinking, "Great, more technical stuff I need to learn,” but it's much simpler to understand the J1772 standard when you know what these pins are for. The advantage of having a standardized connector is that your EV will slot perfectly at almost any public charging station. You don't have to worry about the road trip ending early because you can't find a compatible charger.
SAE 1772 Safety and Communication
Before charging begins, the charger checks that everything is properly connected. It sends a small signal through the
control pin (CP). If everything looks good, it starts charging.
The charger also sends a
signal pulse to let the car know how much current it can safely pull. The wider the pulse, the more power is available. For example:
- 16% pulse = 10 amps available
- 25% pulse = 16 amps
- 50% pulse = 32 amps
This helps match the charging speed to what the car and the charger can handle.
SAE 1772 Option with More Power
While the original SAE J1772 plug is great for regular charging at home or work, sometimes you need a serious boost, like when you're on a road trip. That's where the Combined Charging System (CCS) comes in. It's a supercharged version of the J1772 connector. By adding two big extra pins underneath the regular J1772 plug, CCS supports DC fast charging, which means power goes directly to the battery, skipping the car's onboard charger and drastically speeding things up. With CCS, you can often charge your EV from 20% to 80% in about 30 minutes or less, depending on your vehicle and the charger's power level. It's the same basic plug, just upgraded for high-speed energy delivery.
How J1772 Was Accepted as The Standard?
It wasn't always easy to create a universal standard. Numerous debates, compromises, and technical discussions were required. The J1772 was developed in 2001 by SAE International, which is known for creating automotive standards. This changed everything. This is quite similar to how USB grew to be the industry standard for gadget data transmission.
Advantages of the J1772 Standard
Most likely, you're asking yourself, "What's in it for me?” Lots. Let's examine some of the main advantages.
Compatibility
You'll have fewer headaches because of the compatibility.
Simplified infrastructure
The larger charging infrastructure is made simpler by using a common connector. Because they are compatible with the great majority of EVs, private charger providers, businesses, and municipalities can install them.
Improved Safety Features
The J1772 standard includes a number of safety features. For example, the proximity pilot (PP) will not initiate the charging process if it determines that the connector is not completely plugged into your vehicle. This lessens the chance of accidents like electrical shocks or short circuits.
Better Interaction
In addition to carrying electricity, the J1772 connector allows your EV and the charger to communicate with one another. This makes intelligent charging possible. For instance, if there is a problem or the battery overheats, your EV can instruct the charger to pause the charging process.
J1772 Charging Levels
As you go more into the topic of charging, you will learn about various "levels” of charge.
Level 1 Charging
The simplest and slowest option is level 1 charging. We're referring to connecting your EV to a typical 120-volt household socket. You can use an adapter or connect to the EV directly with the J1772 connector. While it's practical for charging overnight, it's not the best option if you’re pressed for time.
Level 2 Charging
Level 2 charging expedites the process. These chargers plug into a 240-volt socket. Level 2 allows for a full charge in a few hours rather than overnight. These chargers are frequently seen in garages at homes and are widely available at public charging stations.
Level 3 Charging / DC Fast Charging
Level 3 charging is where things start to get interesting. These chargers, also known as DC fast charging, can fully charge your EV in under an hour. It is important to remember that you need a CCS connector for DC charging.
Public or Home Charging?
You have two choices for utilizing a J1772 standard charger. You can find a public charging station or charge your EV at home. Each method has advantages.
Home Charging
It is difficult to find a more convenient option than home charging. You can plug in your car overnight and wake up to a fully charged battery if you have a Level 2 J1772 charger installed in your garage. It's more environmentally friendly than owning your own gas pump. Electricity is typically less expensive than gasoline, so you'll also save some money.
Public Charging
But when you're on the go, public charging stations come in quite handy. You can plug in and draw from the majority of charging stations because of the J1772 compatibility. You can locate stations in your area with the aid of apps like PlugShare or ChargePoint. Additionally, several commercial spaces and places of employment provide free charging as a benefit.
The Future of EV Charging Standards
The J1772 standard is here to stay, at least for a while. However, new technologies and regulations are going to emerge as the EV business develops further.
New Technologies
Wireless charging, for example, is a popular topic. Consider simply parking your vehicle on a pad and allowing it to charge without a plug. Plans are underway to standardize wireless charging as well, even if this technology is still in its infancy.
Connecting Smart Home Integration
EV chargers in the future will likely work with smart home systems even better. Imagine that, to maximize charging times, your EV charger interacts with the solar panels in your house. Your car is given priority when electricity is more affordable or available. That's where we're going, not just a dream.
That's it. In the big picture of moving to EVs, the J1772 standard might seem like a little detail, but it's revolutionary. It's the unsung hero that makes sure you can charge your EV practically anywhere.
