Modern electric vehicles primarily rely on two charging methods: AC charging (slow charging) and DC charging (fast charging). Although both methods ultimately deliver energy to the battery pack, their operating principles, system architecture, and charging performance differ significantly.
How an EV Charging System Works
The fundamental purpose of an EV charging system is to transfer electrical energy from the power grid to the vehicle's battery while ensuring safety through continuous monitoring, communication, and protection functions.
A complete charging system typically includes:
- Charging connector and charging inlet
- Charging cable
- Vehicle Control Unit (VCU)
- Battery Management System (BMS)
- Charging equipment
- Communication and protection circuits
During charging, the vehicle and charging equipment continuously exchange information regarding current capacity, battery status, temperature, voltage, and safety conditions. Charging only begins after all safety requirements are satisfied.
AC Charging: The Most Common Charging Method for Everyday Use
AC charging is the most widely used charging method for residential and workplace applications. In this system, electricity supplied by the grid enters the vehicle as alternating current and is converted into direct current by the onboard charger before reaching the battery pack.
Depending on the region and installation environment, AC charging may utilize either 220V single-phase power or 380V three-phase power.
The main components involved in AC charging include:
- Onboard charger (OBC)
- AC charging inlet
- Charging cable
- AC charging station or household power outlet
- VCU and BMS control systems
Among these components, the charging cable plays a particularly important role in ensuring safe power delivery.
Why Mode 2 Charging Is Popular Worldwide
A

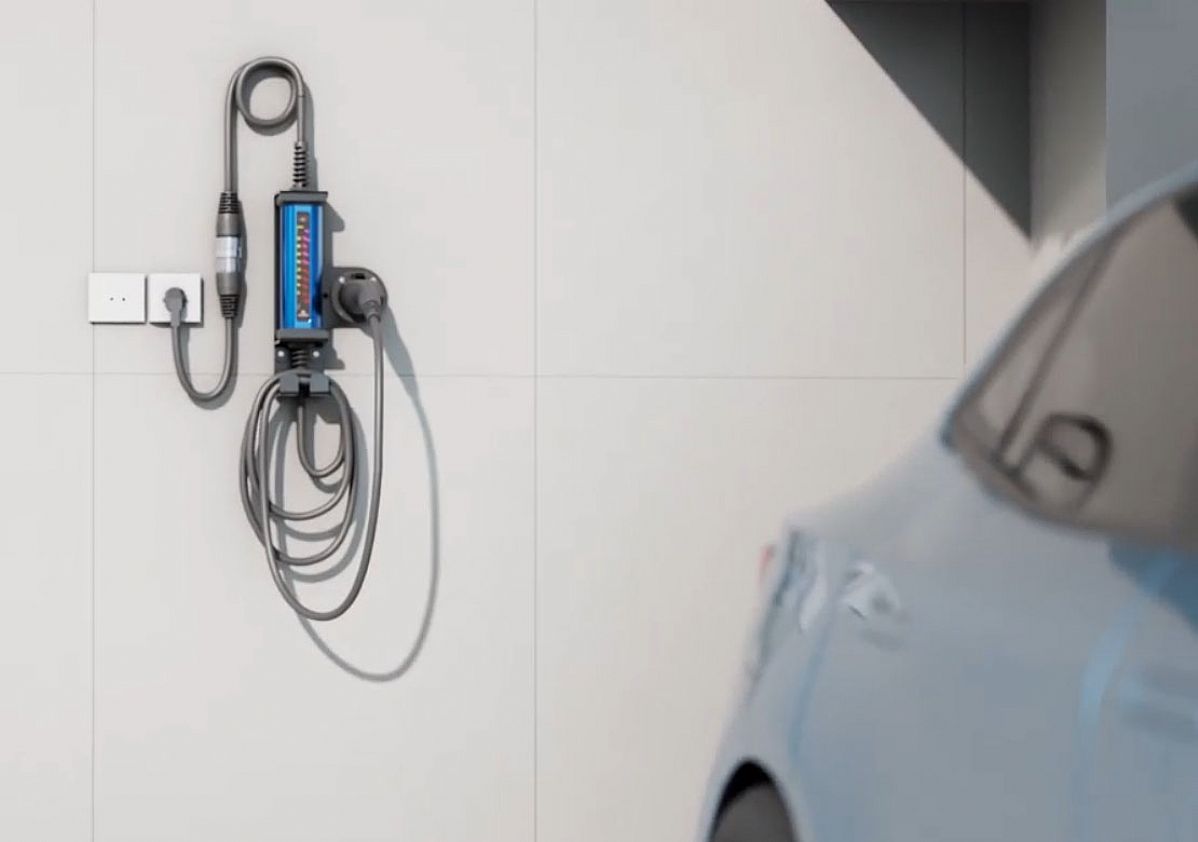

Mode 2 EV Charging Cable provides a convenient way to charge directly from a standard household outlet without requiring a dedicated charging station.
Unlike ordinary extension cables, a Mode 2 charging cable incorporates an In-Cable Control and Protection Device (IC-CPD) that continuously monitors both vehicle and grid conditions. The control unit can automatically disconnect power when abnormalities are detected, significantly improving charging safety.
Typical Mode 2 charging specifications include:
- 220V AC input voltage
- Maximum charging current of approximately 13A
- Charging power up to 2.86 kW
- Integrated protection functions
- Portable and easy-to-use design
Because charging power is relatively moderate, battery temperature rises more slowly during charging, which can contribute to longer battery life compared with frequent high-power charging.
For many EV owners, Mode 2 charging remains the most practical solution for overnight charging and everyday vehicle use.
AC Charging Communication and Safety Mechanisms
Modern AC charging systems utilize dedicated communication signals to ensure safe operation.
The CC (Connection Confirmation) signal verifies whether the charging connector is correctly inserted and determines cable capacity. The CP (Control Pilot) signal communicates the available charging current from the charging equipment to the vehicle through PWM control.
Once the connector is inserted, the charging process typically follows this sequence:
1. Vehicle detects charging connection.
2. Onboard charger wakes vehicle systems.
3. VCU and BMS perform system checks.
4. Charging equipment and vehicle exchange status information.
5. BMS authorizes charging.
6. Power relays close.
7. Charging begins automatically.
This fully automated process improves user convenience while maintaining strict safety control.
DC Fast Charging: Delivering Rapid Energy Replenishment
Unlike AC charging, DC charging performs power conversion inside the charging station rather than inside the vehicle.
The charging station converts three-phase AC power into high-voltage DC power and delivers it directly to the battery pack through a dedicated DC charging connector.
Since the onboard charger is bypassed, charging power can be significantly higher, allowing much shorter charging times.
A typical DC charging system includes:
- DC charging connector
- DC charging inlet
- Battery Management System
- DC fast charging station
- CAN communication network
The BMS communicates directly with the charging station to regulate charging voltage and current according to battery conditions and safety requirements.
Because of the higher charging power involved, thermal management and battery protection become particularly important during DC charging operations.
AC Charging vs. DC Charging: Which One Is Better?
Both charging methods have important advantages and are designed for different charging scenarios.
Feature
|
AC Charging
|
DC Charging
|
Charging Speed
|
Moderate
|
Very Fast
|
Installation Cost
|
Lower
|
Higher
|
Battery Stress
|
Lower
|
Higher
|
Heat Generation
|
Lower
|
Higher
|
Home Charging Suitability
|
Excellent
|
Limited
|
Public Charging Suitability
|
Good
|
Excellent
|
For daily commuting and overnight charging, AC charging is generally considered the most battery-friendly option. Lower charging currents reduce heat generation, minimize battery stress, and help extend battery lifespan.
DC fast charging, on the other hand, is ideal for long-distance travel, fleet operations, and situations where rapid charging is required.
Most EV manufacturers recommend combining both charging methods: using AC charging for routine charging needs and reserving DC fast charging for occasions when faster charging is necessary.
Why Mode 2 Charging Continues to Play an Important Role
As public charging infrastructure expands, portable charging solutions remain highly valuable for EV owners.
A Mode 2 EV Charging Cable offers several important advantages:
- Compatible with standard household outlets
- Portable and travel-friendly
- Built-in protection electronics
- Lower installation costs
- Convenient emergency charging capability
- Reduced battery stress during regular charging
These advantages make Mode 2 charging one of the most versatile charging solutions available for private EV owners worldwide.
Conclusion
EV charging systems rely on sophisticated communication, control, and protection mechanisms to ensure safe and efficient energy transfer between the power grid and vehicle batteries.
While DC charging provides unmatched speed for long-distance travel and commercial applications, AC charging remains the preferred choice for everyday charging due to its simplicity, safety, and battery-friendly characteristics. Among AC charging solutions, the Mode 2 EV Charging Cable continues to offer an excellent balance of convenience, portability, and charging safety, making it an essential accessory for modern electric vehicle owners.
For manufacturers, distributors, and EV users seeking reliable charging equipment, understanding these charging principles is the first step toward selecting the right charging solution for long-term performance and safety.
