As electric vehicles become increasingly common worldwide, portable EV chargers continue to play an important role in daily charging. While public charging infrastructure is expanding rapidly, many EV owners still rely on portable charging solutions for home charging, travel, and emergency situations.

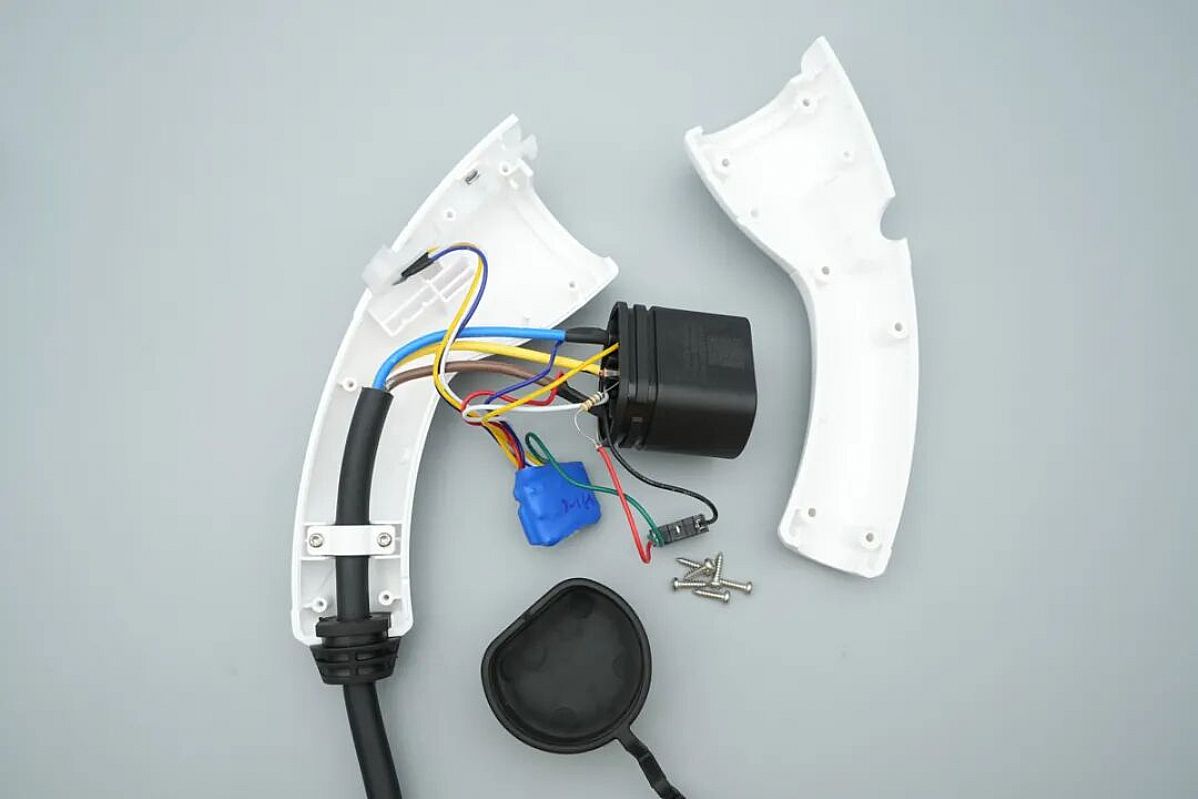

Recently, a teardown of a BYD portable AC charging gun revealed several interesting design choices that highlight what makes a reliable Mode 2 EV charging cable. By examining its structure, safety features, and electrical design, we can better understand the key factors that contribute to charging safety and long-term durability.
For many EV owners, a portable charger is often the first charging solution they use after purchasing a vehicle.
Unlike fixed wall-mounted charging stations, portable chargers offer greater flexibility. Drivers can charge from standard household outlets, carry the charger during travel, and use it as a backup when public charging stations are unavailable.
However, portability should never come at the expense of safety. A high-quality portable EV charger must withstand continuous current loads, outdoor environments, and thousands of connection cycles while maintaining reliable communication with the vehicle.
One of the most noticeable features of the BYD charger is its use of a 3×4mm² EV-rated charging cable.
Cable selection is critical because it directly affects heat generation, voltage drop, and long-term reliability. Larger conductor sizes help reduce resistance and improve safety during extended charging sessions.
For portable chargers rated at 16A, using properly sized conductors is particularly important because charging often continues for several hours without interruption.
The examined charger also uses a 5-meter cable length, providing a practical balance between charging flexibility and cable management.
Unlike some portable charging solutions that place the control box in the middle of the cable, this design integrates the primary control circuitry directly inside the charging connector.
This approach offers several benefits:
By minimizing bulky external components, users can connect and disconnect the charger more comfortably while maintaining full charging functionality.
Modern AC charging relies on continuous communication between the vehicle and charging equipment.
Inside the charging connector, a dedicated control board generates and manages the Control Pilot (CP) signal, which allows the vehicle and charger to exchange charging information safely.
The teardown also revealed the use of a 680Ω resistor connected to the charging interface. Under Chinese AC charging standards, this resistor value identifies the cable's current-carrying capability and allows the vehicle to recognize the charger's charging capacity.
This seemingly small component plays an important role in ensuring that charging current remains within safe operating limits.
Portable EV chargers are frequently exposed to dust, humidity, rain, and temperature changes.
For this reason, environmental protection is just as important as electrical performance.
The analyzed charger features:
These features help prevent mechanical damage and environmental contamination during everyday use.
At the heart of every Mode 2 charging cable is a control module responsible for communication, monitoring, and protection functions.
The internal PCB found in the charger includes:
Together, these systems continuously monitor charging status and ensure safe interaction between the vehicle and the power supply.
A reliable portable EV charger is much more than a plug and cable.
Several design elements determine overall performance:
Proper conductor sizing, thermal management, and communication circuitry ensure safe long-term operation.
Water resistance, dust protection, and durable materials help extend service life.
Strain relief systems, locking mechanisms, and robust connector construction improve durability during frequent use.
Integrated electronics provide continuous monitoring and protection throughout the charging process.
As EV adoption continues to accelerate, portable charging solutions remain an essential part of the charging ecosystem.
The design choices found in BYD's portable charging gun demonstrate how cable quality, communication technology, environmental protection, and intelligent control systems work together to create a safe and dependable charging experience.
Whether for home charging, travel, or emergency backup use, a well-designed Mode 2 EV charger offers the flexibility, safety, and convenience that modern EV owners increasingly expect.
For manufacturers, distributors, and charging equipment suppliers, understanding these design principles is key to developing charging solutions that meet both current market demands and future industry standards.
