With the rapid popularization of electric vehicles (EVs) and plug-in hybrid electric vehicles (PHEVs), SAE J1772 charging technology, as a U.S. standard interface, has become a mainstream AC charging solution worldwide. This article focuses on SAE J1772 standard, from the charging technology overview, interface development basis to the common J1772 extension cable application, in-depth analysis of how to realize efficient, stable and safe charging experience.
1. SAE J1772 Charging Technology Overview
SAE J1772 technology defines all electronic interfaces and control signals between electric vehicles and AC charging equipment (AC Level 1 and AC Level 2), and is the technical basis for AC slow charging and fast charging.
1.1 Basic Functions of Charging Interface
J1772 interface consists of control circuits, contactors, connectors and electronic locks, etc. It supports the usage scenarios of home power supply and public charging station:
-AC charging: applicable to long time parking environment such as home and office, providing slow charging.
-Fast charging: suitable for public fast charging station, which can replenish a large amount of power in a short time.
1.2 Charging Modes and Communication Protocols
The SAE J1772 standard supports the following charging modes:
-Mode 1: Slow charging through ordinary home outlets.
-Mode 2: Slow charging by home power with added protection device.
-Mode 3: Dedicated AC charger for more efficient charging.
In terms of communication protocol, J1772 realizes the information interaction of charging demand, status monitoring and safety protection through Control Pilot cable and Proximity contact.
2. SAE J1772 Charging Interface Development Basics
2.1 Interpretation of SAE J1772 Standard
SAE J1772 standard specifies the physical, electrical, and communication characteristics of the interface, which is the key to the compatibility design:
-AC Main contact: transferring AC power
-Proximity contact: detecting plug insertion/removal status
-Control Pilot contact: charging communication
-Power Line Communication (PLC)
-Ground contact: safety grounding
LED indicator is used to show the charging status in real time.
2.2 Hardware Design
Key components include:
- Connectors
- Control Module
- High Voltage Relay
- High Current Contactor
2.3 Software Development
-Driver: responsible for hardware initialization, communication and current control
-Control logic: battery status monitoring, charge rate control, safety exception handling, data logging

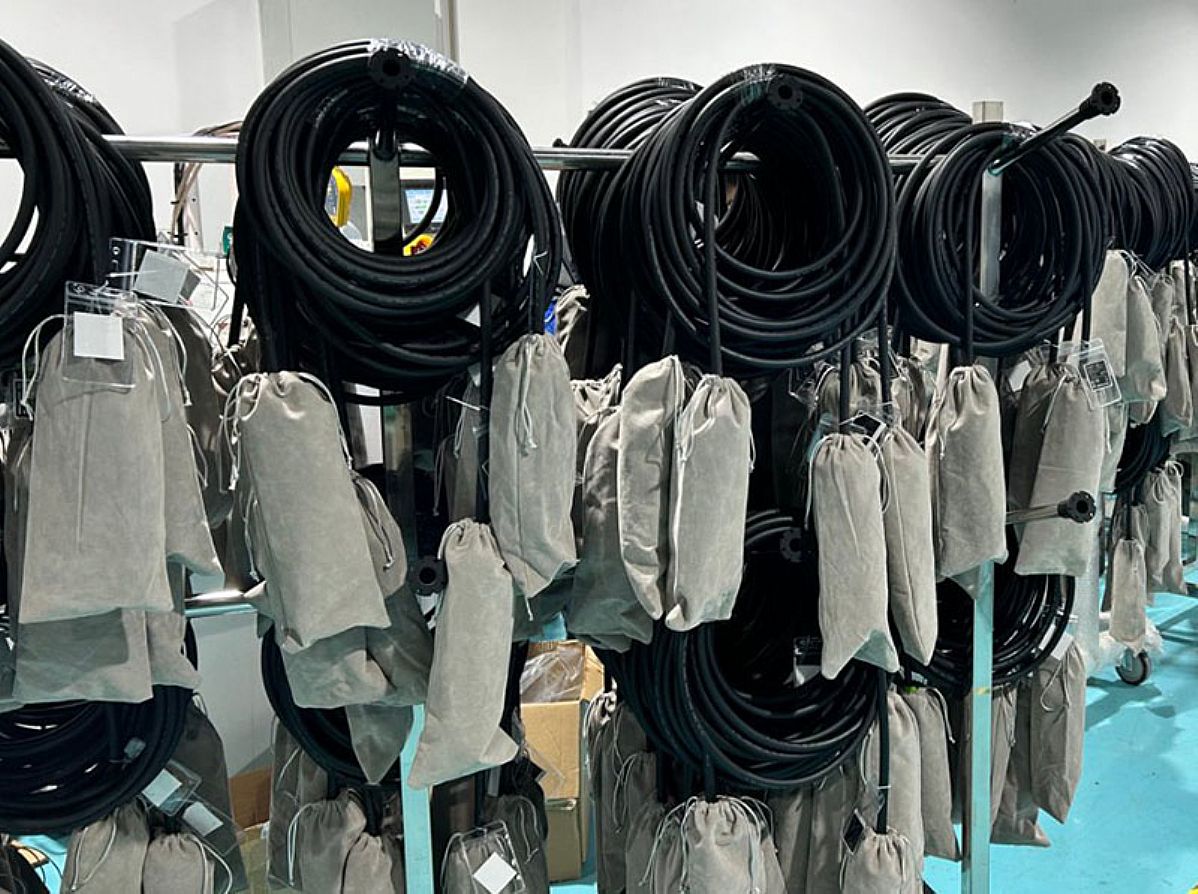

3. J1772 Extension Cord Application and Selection Guide
With the increase in the number of public charging piles and the diversification of users' charging needs, J1772 Extension Cord is increasingly widely used. J1772 Extension Cord can effectively solve the following problems:
- Insufficient distance between charging piles and vehicle interfaces: Especially in the public parking lot or home garage, the extension cord can flexibly cope with various charging scenarios. Flexible response to various charging scenarios.
-Enhanced interface compatibility: support various AC charging piles and J1772 standard electric vehicles.
3.1 Key Design Elements of J1772 Extension Cord
- SAE J1772 compliant interface design: ensure compatibility with existing chargers and vehicles.
-High-quality conductor and insulation materials: ensure safety and durability.
-Waterproof and dustproof rating: suitable for various outdoor environments.
-Current capacity: commonly 16A, 32A or 40A, users should choose according to the power of charging pile and vehicle demand.
3.2 Safety and Certification of J1772 Extension Cord
High quality J1772 extension cords must be certified by UL, CE or TUV, etc. It supports overload protection, over temperature protection and short circuit protection to ensure charging safety.
3.3 Common Failures and Diagnosis
Failures of J1772 extension cords are mostly caused by the following reasons:
- Loose or damaged connectors
- Heat overload of conductors
- Abnormal communication of signaling wires
It is recommended to check the condition of connectors and cords regularly during use and replace them if necessary.
4. Summary
SAE J1772 standard is the core technology of current AC charging for electric vehicles, and J1772 extension cable, as a practical complementary product, can effectively enhance charging flexibility and convenience. Whether it is hardware development, software control, or extension cable selection, the standard and safety norms should be strictly followed to help build an efficient, safe and intelligent charging ecosystem.
